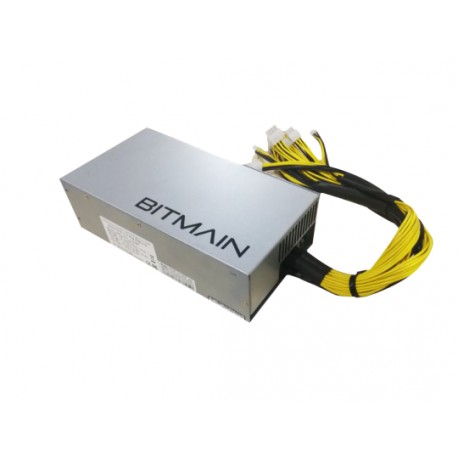

Bitmain APW7 Power Supply for Antminer

$413.00
Incl. GST

Works with:

Antminer Z9
Antminer S9i
Antminer Z9 mini
Antminer B3
Antminer L3++
Antminer E3
Antminer X3
Antminer V9
Antminer A3
Antminer T9+
Antminer D3
Antminer T9
Antminer S9
Antminer L3+

Quantity

  Secure payments via Credit Cards, PayPal, Apple Pay or Google Pay

Encrypted transactions ensure your financial data is always protected.

  Free Shipping

Worldwide delivery with no extra costs. All orders shipped within 1 business day.

  Hassle-Free Returns

30-day money-back guarantee with 1-year product warranty for complete peace of mind.


1. The APW7 can deliver a maximum power of only 1000W if it is connected to a 110V mains power supply. To obtain the rated power of 1800W, the APW7 must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.
2. This batch of PSU comes with only 10 PCIe connectors so cannot be used with more than one Antminer.
3. All items added to cart are shipped according to the item with the latest shipping date in the cart. If you would like to receive an item earlier, please place a separate order for it.
4. Be sure to keep the original packing on hand when you get PSU, the original box should be used to return the PSU when you requesting RMA. Otherwise, it won't be honored.

Specifications

Output

DC Voltage

12.0V

Rated Current(220V input)

150A

Rated Power (220V input)

1800W

Rated Current(110V input)

83.3A

Rated Power (110V input)

1000W

Ripple & Noise

<1%

Voltage Accuracy

12.0-12.5V

Source Regulation

<1%

Load Regulation

<1%

Setup, Rise Time

<2S

Power off Protection Trip Time

>10mS

Input

Voltage Range

100-264V AC

Frequency Range

47-63Hz

Power Factor

>0.99(full load)

Leakage Current

<1.5mA（220V 50Hz）

Protection

Low-voltage Input

80-89V AC

Output Short Circuit

Yes

Output Overcurrent

150-200A

Overheat Protection

Yes

Environment

Operating Temperature

-20-60℃

Operating Humidity

20%-90%RH(non-­‐condensing)

Altitude

< 2000m

Structure

Dimensions

206*110*62mm

Weight

2.0kg



Cooling Mode

force-­‐air cooling



Noise

43DB



APW7 Efficiency Curve（output cable loss is not included）

                   APW7 Efficience Curve

APW7 Output Power VS Input Voltage Derating Curve

APW7 Output Power VS Input Voltage Derating Curve
